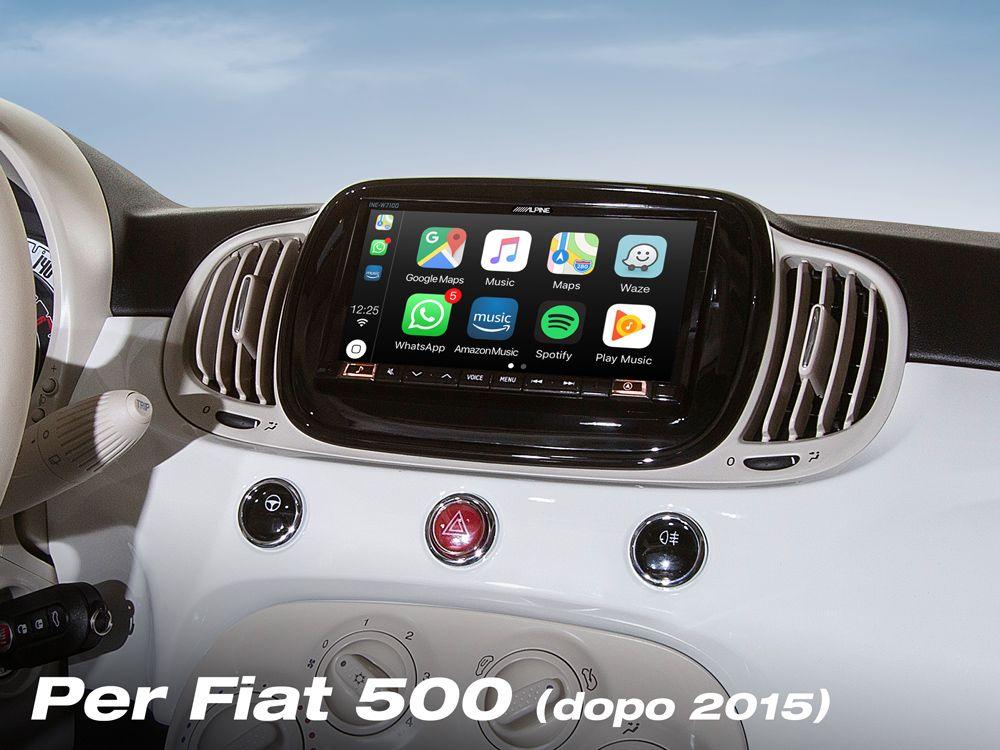

Alpine iLX-702-500MCA autoradio 2 DIN specifico FIAT 500, Car Play, Android Auto

Sistema dedicato alla nuova 500 (Abarth o Fiat), iLX-702-500MCA offre la più recente compatibilità con i supporti multimediali, e la qualità audio Alpine. E' compatibile con gli smartphone più recenti, come iPhone X o Galaxy S9, e consente di utilizzare Android Auto and Apple CarPlay sul suo schermo touch screen da 7 pollici ad alta risoluzione.

Sistema dedicato alla nuova 500 (Abarth o Fiat), iLX-702-500MCA offre la più recente compatibilità con i supporti multimediali, e la qualità audio Alpine. E' compatibile con gli smartphone più recenti, come iPhone X o Galaxy S9, e consente di utilizzare Android Auto and Apple CarPlay sul suo schermo touch screen da 7 pollici ad alta risoluzione.

Le funzioni di digital radio DAB+, USB video, connettività HDMI e le ultime tecnologie Bluetooth sono incorporate.

E' possibile utilizzare i sistemi di navigazione online, attraverso Apple Car Play o Android Auto, collegando lo smartphone via USB.


Caratteristiche


• Monitor 7’’Touch capacitivo
• Compatibilità con Apple CarPlay e AndroidAuto via USB
• Ingresso HDMi / Uscita HDMi
• Tuner radio DAB+ (digital radio con Slide Show, Following)
• Antenna DAB KAE-242DA compresa
• Plastica di installazione nero lucido con staffe dedicate
• Adattatore Antenna FM
• Tuner Radio FM/AM RDS
• Amplificatore da 4 X 50 W
• 1 Ingresso A/V
• 1 Ingresso Rear Camera Direct Camera
• Ingresso USB A/V
• Equalizzatore Parametrico a 9 Bande,Crossover,Correzione Temporale
• 3 Pre-out (Front/Rear/Subwoofer) a 4 Volt
• DAC 24 Bit
• Modulo Bluetooth integrato con Audio Streaming e microfono integrato
• Logo di Accensione Alpine Style
• Ripristino dei comandi al volante originali e dei menu del veicolo
• Codice di sicurezza



SPECIFICHE

Screen

Screen Size: 7 inch Capacitive WVGA
LCD Type: Transparent Type TN LCD
Operation System: TFT Active Matrix
Number of Picture Elements: 1,152,000 pixels (800 x 3 x 480)
Illumination System: White LED Backlighting
Effective Number of Picture Elements: 99.99%
Colour System: NTSC, PAL

Max Power Output Ratings

Max Power Output: 4 x 50 W

FM Tuner

Tuning Range: 87.5 - 108.0 MHz
Mono Usable Sensitivity: 8.1 dBf (0.7 µV / 75 ohms)
50dB Quieting Sensitivity: 12 dBf (1.1 µV / 75 ohms)
Alternate Channel Selectivity: 80 dB
Signal-to-Noise Ratio: 65 dB
Stereo Separation: 35 dB
Capture Ratio: 2 dB

MW Tuner

Tuning Range: 531 - 1,602 kHz
Usable Sensitivity (IEC Standard): 25.1 µV / 28 dBf

LW Tuner

Tuning Range: 153 - 281 kHz
Usable Sensitivity (IEC Standard): 31.6 µV / 30 dBf

USB

USB Requirements: USB 2.0
Max. Power Consumption: 1,500 mA (CDP Support)
USB Class: Mass Storage Class, Play From Device
File System: FAT 16/32
MP3 Decoding: MPEG-1/2 AUDIO Layer-3
WMA Decoding: Windows Media™ Audio
AAC Decoding: ACC-LC format ′′.m4a′′ file
Flac Decoding
USB Video playback (AVI/MP4/MKV file with H.264 Video and MP3/AAC Audio)
Number of Channels: 2-Channel (Stereo)
Frequency Response: 5 - 20k Hz ±1 dB *Frequency Response may differ depending on the encoder software/bit rate
Total Harmonic Distortion (at 1kHz): 0.008%
Dynamic Range(at 1kHz): 95 dB
Signal-to-Noise Ratio: 100 dB
Channel Separation (at 1kHz): 85 dB

GPS / Glonass

GPS / Glonass compatible navigation antenna included

BLUETOOTH®

BLUETOOTH® Version: Bluetooth V3.0+EDR
Output Power: +4 dBm Max. (Power class 2)
HFP: HFP (Hands Free Profile)
OPP (Object Push Profile)
PBAP (Phone Book Access Profile)
HSP (Head Set Profile)
A2DP: A2DP (Advanced Audio Distribution Profile)
AVRCP: AVRCP (Audio/Video Remote Control Profile)
SPP (Serial Port Profile)

Sound Tuning

Subwoofer Level Adjustment: 0 to +15
Subwoofer Phase Setting: 0° or 180°
BASS ENGINE SQ: 5Mode, Level 0 to +6
High Pass Filter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
High Pass Filter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
High Pass Filter (Gain): -12 to 0 dB
Low Pass Filter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
Low Pass Filter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
Low Pass Filter (Gain): -12 to 0 dB
Time Correction: 0.0 - 9.9ms (0.1ms step)
Dual HD EQ Front + Rear
Parametric Equalizer (Band 1): 20 - 100 Hz
Parametric Equalizer (Band 2): 63 - 315 Hz
Parametric Equalizer (Band 3): 125 - 500 Hz
Parametric Equalizer (Band 4): 250 - 1k Hz
Parametric Equalizer (Band 5): 500 - 2k Hz
Parametric Equalizer (Band 6): 1k - 4k Hz
Parametric Equalizer (Band 7): 2k - 7.2k Hz
Parametric Equalizer (Band 8): 5.8k - 12k Hz
Parametric Equalizer (Band 9): 9k - 20k Hz
Parametric Equalizer (Gain): -14 to +14
Application Volume Level Setting: -14 to +14

HDMI Section

Input Format 720p/480p/VGA
Output Format 480p

General

Power Requirement: 14.4 V. DC (11-16V allowable)
Pre Output Voltage (Before Clipping): 2 V / 10k ohms
Maximum Mounting Angle: 30°

Dimensions

iLX-500MCA: Fits for Fiat 500
Din Size: 1DIN chassis and 7” Capacitive Touch Screen
Chassis Size (W x H x D) mm: 178 x 50 x 164 mm

Compatible Cars

Fiat 500 (312MCA) 2016 →
